I6 Series

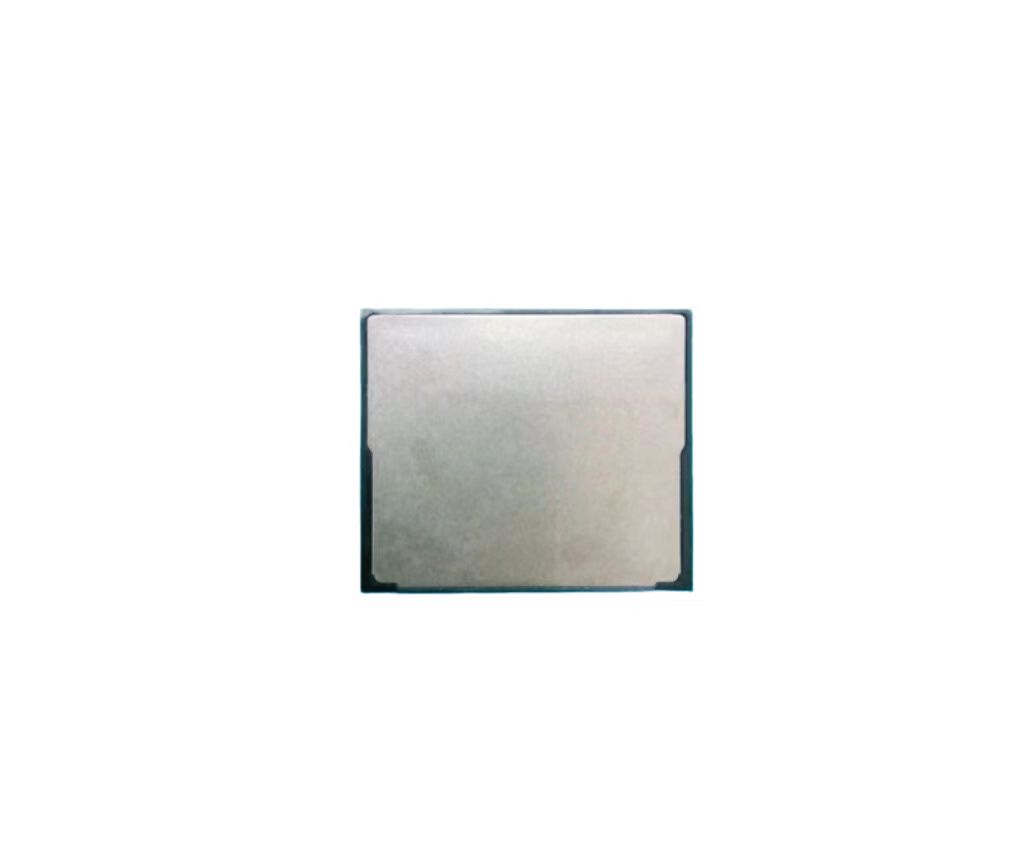

Industrial CF Card – I6 CompactFlash Cards
Features
- CompactFlash™ Card
- High Performance, Low Power
- MLC/SLC NAND for high reliability
- 3K/10K P/E Cycles – improved endurance
- Wide temperature support: -40ºC to +85ºC
Indudisk Industrial CF Card delivers high reliability and high durability for industrial and military applications. They are specially designed with the highest quality MLC Nand or SLC Nand for applications which demand data integrity and 100% uptime. It is ideal storage device for many embedded flash storage requirements because of its small form factor and rugged design.
Specifications I6 Series CF Card
| Physical | |||||||
| Form Factor | CF Card | ||||||
| Interface | PATA | ||||||
| Size | 42.8×36.4×3.3 mm | ||||||
| Capcity | MLC:8GB~256GB SLC:8GB~64GB | ||||||
| Flash Type | MLC/SLC | ||||||
| Performance | |||||||
| Sequential Read/Write | 90/80MB/S | ||||||
| Random IOPS Read/Write(4K) | 70K/70K MB/S SLC:55K/60K | ||||||
| Access Time | <0.1ms | ||||||
| Electrical | |||||||
| Power Supply | 5V±5% | ||||||
| Power Consumption | Active: ≤2.0W Idle: ≤0.3W | ||||||
| Temperature | |||||||
| Operating Temperature | Industrial temp.: -20℃～+70℃Wide Temp.:-40℃～85℃ Extended Temp.:-55～+105℃ | ||||||
| Storage Temperature | (-55℃～+95℃) | ||||||
| Environmental | |||||||
| Vibration | 16.4G(Peak,10-2000Hz,x3 Axis,10minutes/Axis) | ||||||
| Shock(Operating) | 1500G(0.5ms,Half sine wave) | ||||||
| Humidity | 5%～95%（No Condensing） | ||||||
| Reliability | |||||||
| MTBF | 2,000,000 h | ||||||
| Data Retention(Max): | 10 Years@25℃ | ||||||
| Special Functions | |||||||
| Power Loss Protection(PLP) | √ | ||||||
| Conformal Coating | √ | ||||||
| Secure Erase | Physical Destruction option | ||||||
| TRIM | √ | ||||||
| S.M.A.R.T | √ | ||||||
