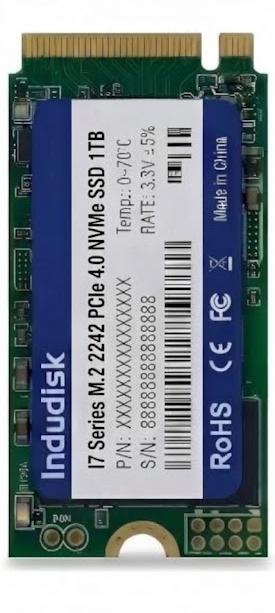

Industrial M.2 2242 NVMe SSD

Compact High-Speed Storage for Embedded & Industrial Systems

Indudisk Industrial M.2 2242 NVMe SSDs are designed for compatible embedded computers, compact industrial PCs, and edge computing platforms that require high-speed storage in a space-constrained form factor.

M.2 2242 Form Factor
Industrial-Grade Reliability
Hardware PLP Available
Long Lifecycle Supply

Compact Desgign

M.2 2242

Data Protection

PLP option

Temperature

Wide temp.option

Long Lifecycle

Controlled BOM

Product Overview

Industrial M.2 2242 NVMe SSD for Compact Embedded Systems

Indudisk Industrial M.2 2242 NVMe SSDs are designed for embedded computing platforms, compact industrial PCs, and specialized equipment where installation space is limited but fast storage access is still required.

Using the M.2 2242 form factor, these SSDs measure 42 × 22 mm and can support compact system designs when the host platform provides a compatible PCIe/NVMe connection. Available configurations, capacities and operating temperature ranges depend on the selected model.

For OEMs and system integrators, Indudisk offers project-based support to evaluate interface compatibility, storage requirements, data protection options and long-term product availability.

Technical Specifications

Product Line	PCIe® Gen4 NVMe M.2 2242 SSD	PCIe® Gen3 NVMe M.2 2242 SSD
Naming	I7 Series PCIe4.0	I7 Series PCIe3.0
Interface	PCIe G4 x4	PCIe G3 x4
General Specifications
Form Factor	M.2 2242	M.2 2242
Protocol	NVMe	NVMe
Size	42mmx22mmx3.7mm	42mmx22mmx3.9mm
Flash Type	3D TLC	3D TLC
Performance & Capacity
Capcity	256GB to 2TB	256GB to 1TB
Sequential Read/Write	6500/6200 MB/S	2400/1200 MB/S
Random IOPS Read/Write(4K)	920K/900K IOPS	250K/160K IOPS
Endurance	Up to 3,000 TBW (2TB)	Up to 1390TBW(1TB)
Electrical
Power Supply	3.3V±5% @2A	3.3V±5% @1.95A
Power Consumption(Max.)	5.38W(active) ,0.95W(idle)	3.5W(active) ,0.63W(idle)
Environmental & Reliability
Operating Temperature	0℃～+70℃/( -20℃～+70℃)/( -40°C to +85°C)	0℃～+70℃/( -20℃～+70℃)/( -40°C to +85°C)
Storage Temperature	(-55℃～+95℃)	0℃～+70℃/( -20℃～+70℃)/( -40°C to +85°C)
Vibration	16.4G(10-2000Hz)	16.4G(10-2000Hz)
Shock(Operating)	1500G(0.5ms,Half sine wave)	1500G(0.5ms,Half sine wave)
Humidity	5%～95%（No Condensing）	5%～95%（No Condensing）
MTBF	2,000,000 hours	2,000,000 hours
Reliability & Data Protection
ECC	LDPC	LDPC
TRIM	SUPPORT	SUPPORT
S.M.A.R.T	SUPPORT	SUPPORT
Power Loss Protection(PLP)	OPTIONAL	OPTIONAL
Conformal Coating	OPTIONAL	OPTIONAL
Secure Erase	OPTIONAL	OPTIONAL
*1.Performance and reliability specifications are model-dependent and may vary by capacity, operating temperature and test conditions.
2. Please refer to the product datasheet for detailed specifications.

Ordering Information

Ordering Information
Model	Capacity	NAND	Temperature Option	Datasheet / Inquiry
I7-P442-256	256GB	3D TLC	0°C to 70°C/-20°C to 70°C/-40°C to 85°C	Request a Quote
I7-P442-512	512GB	3D TLC	0°C to 70°C/-20°C to 70°C/-40°C to 85°C	Request a Quote
I7-P442-01T	1TB	3D TLC	0°C to 70°C/-20°C to 70°C/-40°C to 85°C	Request a Quote
I7-P442-02T	2TB	3D TLC	0°C to 70°C/-20°C to 70°C/-40°C to 85°C	Request a Quote
I7-P342-256	256GB	3D TLC	0°C to 70°C/-20°C to 70°C/-40°C to 85°C	Request a Quote
I7-P342-512	512GB	3D TLC	0°C to 70°C/-20°C to 70°C/-40°C to 85°C	Request a Quote
I7-P342-01T	1TB	3D TLC	0°C to 70°C/-20°C to 70°C/-40°C to 85°C	Request a Quote

Industrial M.2 2242 NVMe SSD Applications

Compact NVMe storage for embedded computing platforms and space-constrained industrial systems.

Industrial PCs Embedded Computing

Compact NVMe storage for embedded computers and industrial PCs with compatible M.2 2242 PCIe NVMe slots.

Transportation Systems

Compact storage for compatible onboard computers, transportation monitoring platforms and embedded data-processing systems.

Robotics & Automation

NVMe storage for compact robotic controllers, embedded automation computers and systems processing sensor and application data.

Medical Equipment

Compact storage for compatible medical computers, diagnostic imaging platforms, and patient-monitoring systems.

Machine Vision & Inspection

Compact NVMe storage for compatible machine vision systems, automated inspection equipment, and image-processing platforms

AI Edge Computing

High-speed local storage for compact edge AI computers that process application data and inference-related workloads

FAQ

Q1: What Is an Industrial M.2 2242 NVMe SSD?

An Industrial M.2 2242 NVMe SSD is a solid-state drive with a 42 × 22 mm M.2 form factor that uses the NVMe protocol over a compatible PCIe interface. It is designed for compact embedded and industrial computing systems that require high-speed storage.

Q2:What Is the Difference Between M.2 2242 and M.2 2280 SSDs?

The main difference is physical size. M.2 2242 modules measure 42 × 22 mm, while M.2 2280 modules measure 80 × 22 mm. The appropriate option depends on the host system's available space, mounting points, connector configuration and interface support.

Q3:What Capacity Options Are Available for the M.2 2242 NVMe SSD?

The product I7 series M.2242 NVMe SSD currently lists capacities from 256GB to 2TB. Available capacities and specifications should be confirmed against the latest model list and datasheet.

Q4:Does the Industrial M.2 2242 NVMe SSD Support Wide Temperature Operation and PLP?

Yes,Hardware power-loss protection and wide temperature Operation is available for supported configurations. Confirm the specific model's PLP implementation and data-protection behavior with the product datasheet or Indudisk technical team.

Q5: Can Indudisk Customize M.2 2242 NVMe SSDs for OEM Projects?

Customization is subject to product and engineering feasibility. Depending on project requirements, options may include capacity, firmware, operating temperature, data-protection functions, and selected hardware configurations. Contact our team with your host platform and application requirements to discuss a suitable solution

Looking for an Industrial PCIe Gen4 NVMe SSD?

Tell us about your capacity, performance, operating temperature, and data-protection requirements. Our team can help you evaluate product compatibility and discuss OEM customization for your application.
