I7 Industrial M.2 SSDs
256GB/512GB/1TB/2TB/4TB
- Extreme Performance up to 6500/6200 MB/S Read/Write and an impressive 920K IOPS
- Industrial-Grade Reliability for stable performance
- Higher Stability and Durance with High-Quality 3D TLC NAND
- Advanced Data Security and Stability
- Support Power Loss Protection

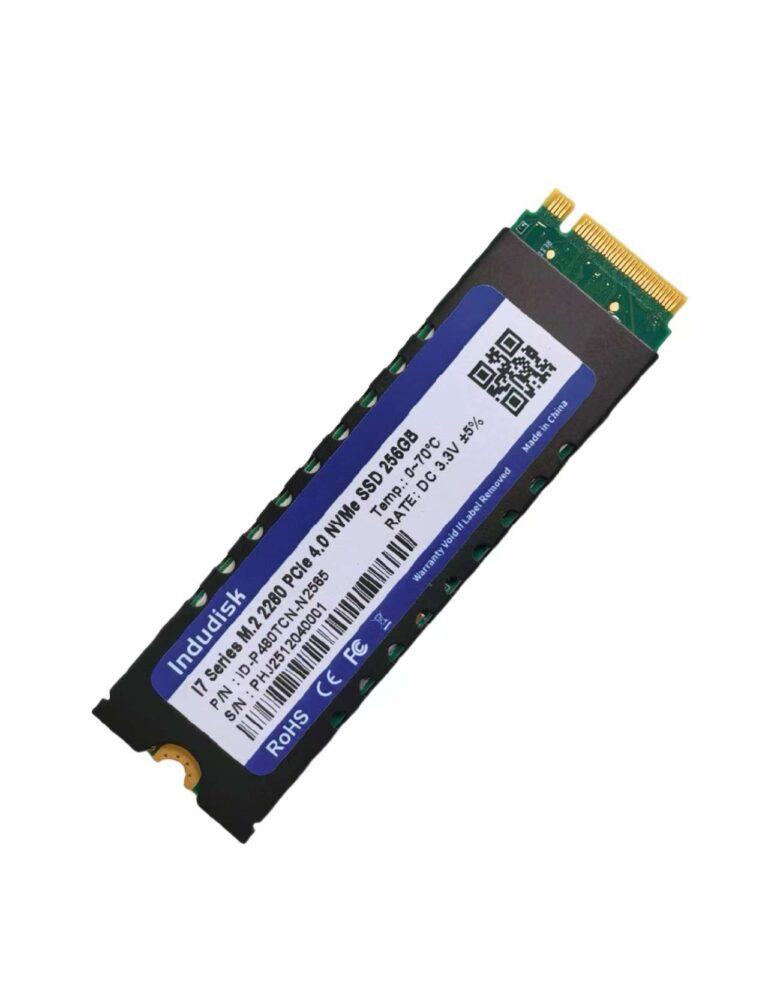

Indudisk Industrial M2 SSD I7 series M.2 2280 PCIe NVMe SSD is built for Blazing-Fast Transfer Performance. Powered by the PCIe4.0 interface and NVMe2.0 protocol , the 4TB NVMe SSD delivers incredible read speeds of up to 6500MB/s and an impressive 920K IOPS for seamless multitasking and ultra-responsive computing. Adopted industry-leading controller and advanced High Quality 3D TLC Nand Flash to Experience faster load times and improved performance for all your computing needs.
Designed to industrial grade specifications, INDUDISK I7 Series SSDs are available in both commercial (0°C to 70°C) and industrial ( -20℃～+70℃)/(-40°C to 85°C) operating temperature ranges. Special features such as NCQ, TRIM, S.M.A.R.T, and Power Loss Protection design enable extreme & stable performance while providing the high level of reliability and high capacity required in industrial applications.
Specification
| Physical | |||||||
| Form Factor | M.2 2280 NVME Gen4.0 *4 | ||||||
| Interface | NVMe | ||||||
| Size | 80mmx22mmx3.7mm | ||||||
| Capcity | 256GB to 4TB | ||||||
| Flash Type | 3D TLC | ||||||
| Performance | |||||||
| Sequential Read/Write | 6500/6200 MB/S | ||||||
| Random IOPS Read/Write(4K) | 920K/900K IOPS | ||||||
| Access Time | <0.1ms | ||||||
| Electrical | |||||||
| Power Supply | 3.3V±5% @2A | ||||||
| Power Consumption | 5.15W(active) ,0.82W(idle) | ||||||
| Temperature | |||||||
| Operating Temperature | 0℃～+70℃/( -20℃～+70℃)/( -40°C to +85°C) | ||||||
| Storage Temperature | (-55℃～+95℃) | ||||||
| Environmental | |||||||
| Vibration | 16.4G(10-2000Hz) | ||||||
| Shock(Operating) | 1500G(0.5ms,Half sine wave) | ||||||
| Humidity | 5%～95%（No Condensing） | ||||||
| Reliability | |||||||
| MTBF | 2000000hrs | ||||||
| Data Retention(Max): | 3 months@≤40℃ | ||||||
| Special Functions | |||||||
| Power Loss Protection(PLP) | OPTIONAL | ||||||
| Conformal Coating | OPTIONAL | ||||||
| Secure Erase | OPTIONAL | ||||||
| TRIM | SUPPORT | ||||||
| S.M.A.R.T | SUPPORT | ||||||
