I7 Series

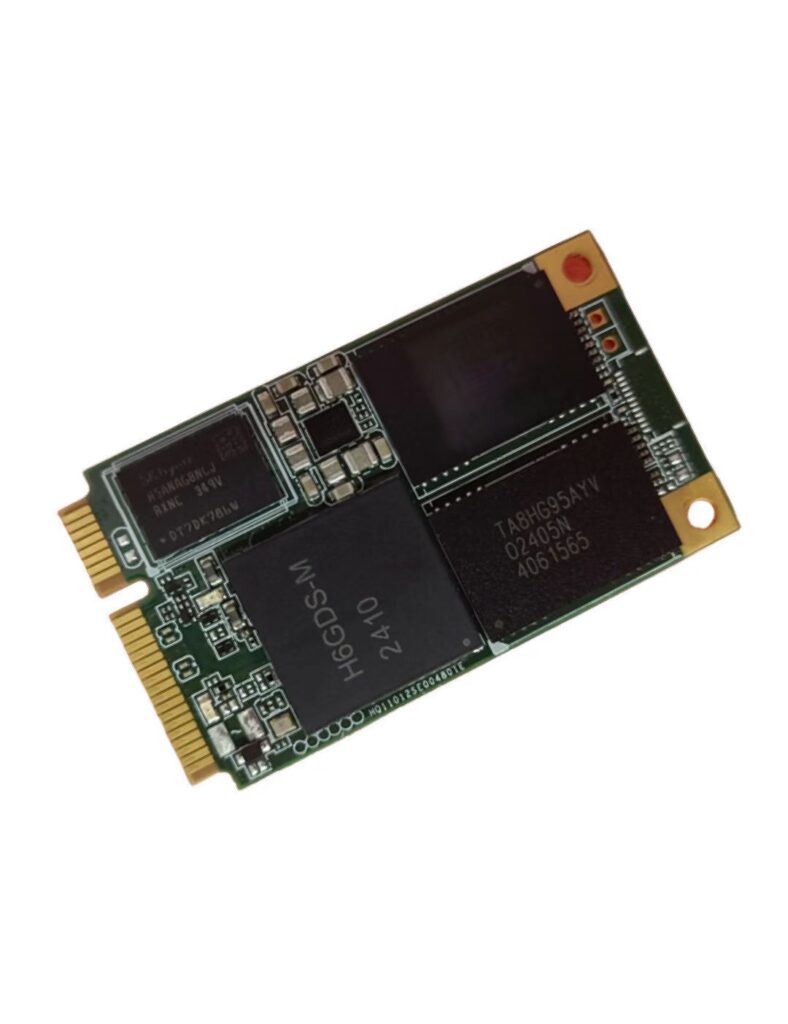

Industrial SSD- I7 mSATA TLC SSD
Features
- The latest 3D TLC technology
- MO-300A form factor
- High performance and reliability
- Big Capacity: 512GB ~ 2TB
- Secure data security support
- For cost sensitive industrial applications
Indudisk Industrial mSATA SSD Modules are small form factor and provide high capacity data storage. These SSD modules are compliant with the latest SATA III (6.0Gb/s) interface specification and deliver leading-edge performance and reliability. . These mSATA SSD modules are fully compliant with the JEDEC MO-300A Standard. are also ideal for applications that place a high demand on embedded storage drives in terms of operating environments. These SSD modules are designed and qualified to deliver reliable operation over both Commercial (0°C to 70°C) and Industrial (-40°C to 85°C) temperature ranges.
Specifications of I7 industrial MSATA SSD
| Physical | |||||||
| Form Factor | Msata3.0(MO-300) | ||||||
| Interface | SATAIII (SATAII and SATAI Compatible) | ||||||
| Size | 100.2×69.85×7.0 mm | ||||||
| Capcity | 256GB ~2TB | ||||||
| Flash Type | 3D TLC | ||||||
| Performance | |||||||
| Sequential Read/Write | 550/490 MB/S | ||||||
| Random IOPS Read/Write(4K) | 90K/80K IOPS | ||||||
| Access Time | <0.1ms | ||||||
| Electrical | |||||||
| Power Supply | 5V±5%(Max 1.95A) | ||||||
| Power Consumption | Active: ≤3.3W Idle: ≤1.2W | ||||||
| Temperature | |||||||
| Operating Temperature | (-40℃～+85℃) | ||||||
| Storage Temperature | (-55℃～+95℃) | ||||||
| Environmental | |||||||
| Vibration | 6.06Grms(Peak,20-2000Hz,x3 Axis,10minutes/Axis) | ||||||
| Shock(Operating) | 50G(11ms,Half sine wave) | ||||||
| Humidity | 5%～95%（No Condensing） | ||||||
| Reliability | |||||||
| MTBF | 2000000hrs | ||||||
| Data Retention(Max): | 10 Years@25℃ | ||||||
| Special Functions | |||||||
| Secure Erase | Optional | ||||||
| Physical Destruction | Optional | ||||||
| TRIM | √ | ||||||
| S.M.A.R.T | √ | ||||||
