industrial 2.5" sATA SSD
Key Features
l High Capacity up to 2TB
l TLC/MLC/SLC option
l For cost sensitive applications
l High Reliability, High Endurance
l Low Power, Low Cost
Indudisk industrial 2.5” SATA SSDs are ideal solutions for embedded applications requiring reliable and long service life storage.

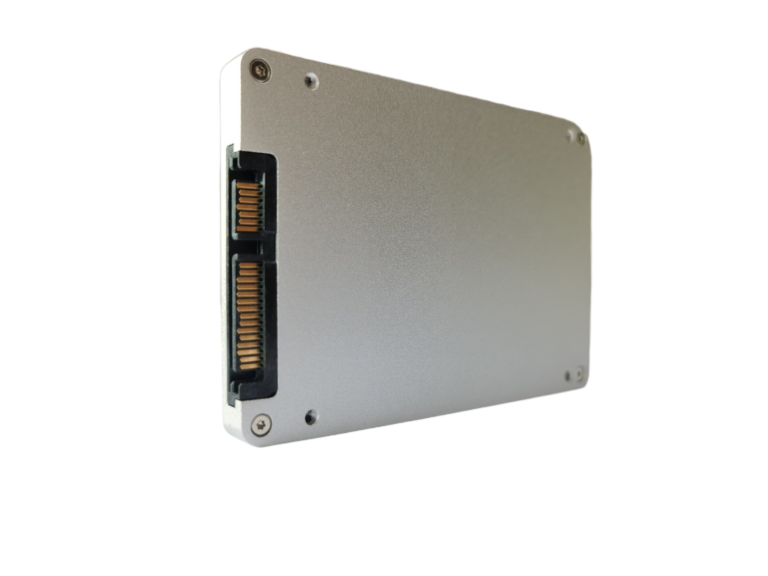

Indudisk 2.5″ SATA TLC SSD I6 Evo Series is based on latest 3D NAND TLC with focus on best TCO. It adopts advanced 3D NAND TLC management technology to improve the endurance of industrial SSD, enhance data security, and help prevent data corruption in case of any power loss.It combines robust NAND controller hardware error correction capabilities with advanced wear-leveling algorithms, bad block management and industrial grade TLC Nand Flash to improve data reliability and significantly extend the life of the SSD product. It is is an ideal storage solution for cost senstive application like ATM, digital signage and networking systems.
Specifications I6 EVO SERIES
| Physical | |||||||
| Form Factor | 2.5″ SATA 7+15pin Connector | ||||||
| Interface | SATAIII (SATAII and SATAI Compatible) | ||||||
| Size | 100.2×69.85×7.0 mm | ||||||
| Capcity | 128GB~2TB | ||||||
| Flash Type | TLC | ||||||
| Performance | |||||||
| Sequential Read/Write | 550/450 MB/S | ||||||
| Random IOPS Read/Write(4K) | 70K/70K MB/S SLC:55K/60K | ||||||
| Access Time | <0.1ms | ||||||
| Electrical | |||||||
| Power Supply | 5V±5%(Max 1.5A) | ||||||
| Power Consumption | Active: ≤6W Idle: ≤0.8W | ||||||
| Temperature | |||||||
| Operating Temperature | Wide Temp.:-40℃～85℃ Industrial temp.: -20℃～+70℃ Commercial Temp.:0℃～+70℃ | ||||||
| Storage Temperature | (-55℃～+95℃) | ||||||
| Environmental | |||||||
| Vibration | 16.4G(10-2000Hz) | ||||||
| Shock(Operating) | 1500G(0.5ms,Half sine wave) | ||||||
| Humidity | 5%～95%（No Condensing） | ||||||
| Reliability | |||||||
| MTBF | 2000000hrs | ||||||
| Data Retention(Max): | 10 Years@25℃ | ||||||
| Special Functions | |||||||
| Power Failure Protection | √ | ||||||
| Confromal Coating | √ | ||||||
| Secure Erase | Optional | ||||||
| Physical Destruction | Optional | ||||||
| TRIM | √ | ||||||
| S.M.A.R.T | √ | ||||||
Specifications I6 SERIES
| Physical | |||||||
| Form Factor | 2.5″ SATA 7+15pin Connector | ||||||
| Interface | SATAIII (SATAII and SATAI Compatible) | ||||||
| Size | 100.2×69.85×7.0 mm | ||||||
| Capcity | MLC:128GB~2TB SLC:16GB~512GB | ||||||
| Flash Type | MLC/SLC | ||||||
| Performance | |||||||
| Sequential Read/Write | MLC: 550/450 MB/S SLC:470/470 MB/S | ||||||
| Random IOPS Read/Write(4K) | 70K/70K MB/S SLC:55K/60K | ||||||
| Access Time | <0.1ms | ||||||
| Electrical | |||||||
| Power Supply | 5V±5%(Max 1.5A) | ||||||
| Power Consumption | Active: ≤3.5W(2W for SLC) Idle: ≤0.8W(0.3W for SLC) | ||||||
| Temperature | |||||||
| Operating Temperature | Wide Temp.:-40℃～85℃ Industrial temp.: -20℃～+70℃ Extended Temp.:-55～+105℃ | ||||||
| Storage Temperature | (-55℃～+95℃) | ||||||
| Environmental | |||||||
| Vibration | 6.06Grms(Peak,20-2000Hz,x3 Axis,10minutes/Axis) | ||||||
| Shock(Operating) | 50G(11ms,Half sine wave) | ||||||
| Humidity | 5%～95%（No Condensing） | ||||||
| Reliability | |||||||
| MTBF | 2000000hrs | ||||||
| Data Retention(Max): | 10 Years@25℃ | ||||||
| Special Functions | |||||||
| Power Failure Protection | √ | ||||||
| Secure Erase | Optional | ||||||
| Physical Destruction | Optional | ||||||
| TRIM | √ | ||||||
| S.M.A.R.T | √ | ||||||
| AES256 Encryption, OPAL 2.0 Compliant | Optional | ||||||
