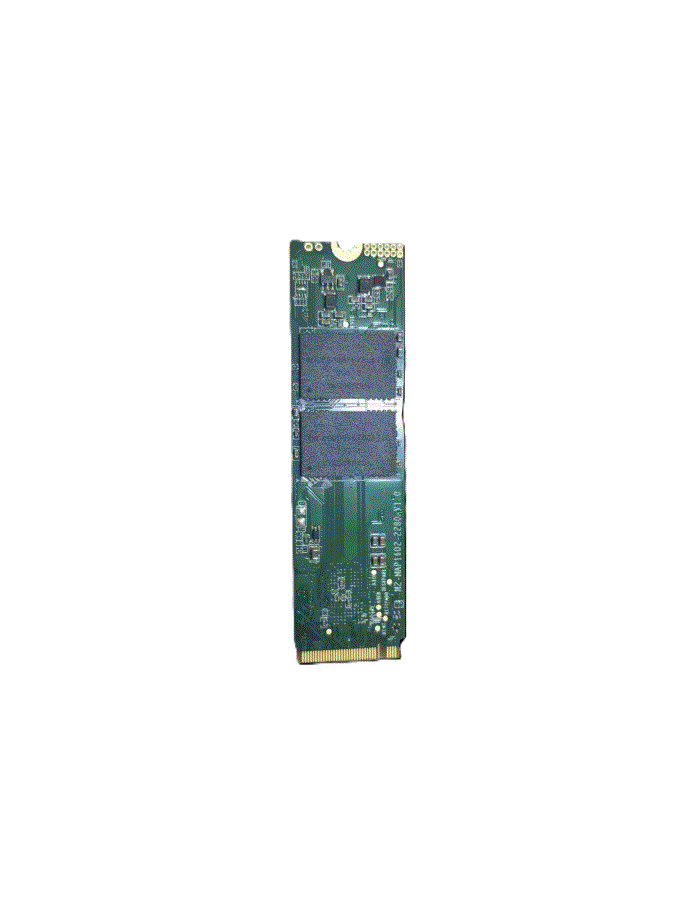

industrial NVMe SSD I6 pro Series
Built with the robust 96 layer 3D Nand architechture and leverging the NVMe architechture, The Indudisk M.2 NVMe Solid State modules are designed with industrial grade 3D NAND TLC Flash and reduced power consumption for temperature critical applications,It delivers outstanding performance,high reliability and endurance in a small, industry standard form factor to fullfuill the inceasing data storage demand of today’s embedded industrial applications. Also,it can deliver stable performance even in extreme temperatures ranging from -40°C to 85°C.
Key Features
l256GB to 4TB Capacities
lSequential Read speeds up to 3,100MB/s and Write speeds up to 2,400MB/s
l-40˚C to +85˚C Operating Temperature
lPower Loss Protection
lIncreased reliability
lCost -effective
Specifications
| Physical | |||||||
| Form Factor | M.2 2280 | ||||||
| Interface | NVMe PCIe Gen3.0x4 | ||||||
| Size | 80*22*3.7mm | ||||||
| Capcity | 512GB~4TB | ||||||
| Flash Type | TLC | ||||||
| Performance | |||||||
| Sequential Read/Write | 3100/2400MB/S | ||||||
| Random IOPS Read/Write(4K) | 70K/70K MB/S | ||||||
| Access Time | <0.1ms | ||||||
| Electrical | |||||||
| Power Supply | 3.3V±5% | ||||||
| Power Consumption | 9W(active) 0.8W(idle) | ||||||
| Temperature | |||||||
| Operating Temperature | Wide Temp.:-40℃～85℃ Industrial temp.: -20℃～+70℃ Commercial Temp.:0℃～+70℃ | ||||||
| Storage Temperature | (-55℃～+95℃) | ||||||
| Environmental | |||||||
| Vibration | 16.4G(10-2000Hz) | ||||||
| Shock(Operating) | 1500G(0.5ms,Half sine wave) | ||||||
| Humidity | 5%～95%（No Condensing） | ||||||
| Reliability | |||||||
| MTBF | 2000000hrs | ||||||
| Data Retention(Max): | 10 Years@25℃ | ||||||
| Special Functions | |||||||
| Power Loss Protection | √ | ||||||
| Conformal Coating | √ | ||||||
| Secure Erase | Optional | ||||||
| TRIM | √ | ||||||
| S.M.A.R.T | √ | ||||||
