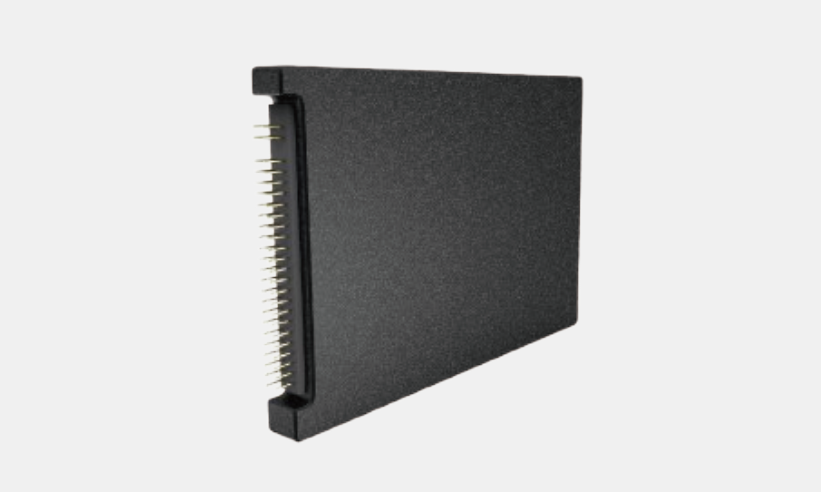

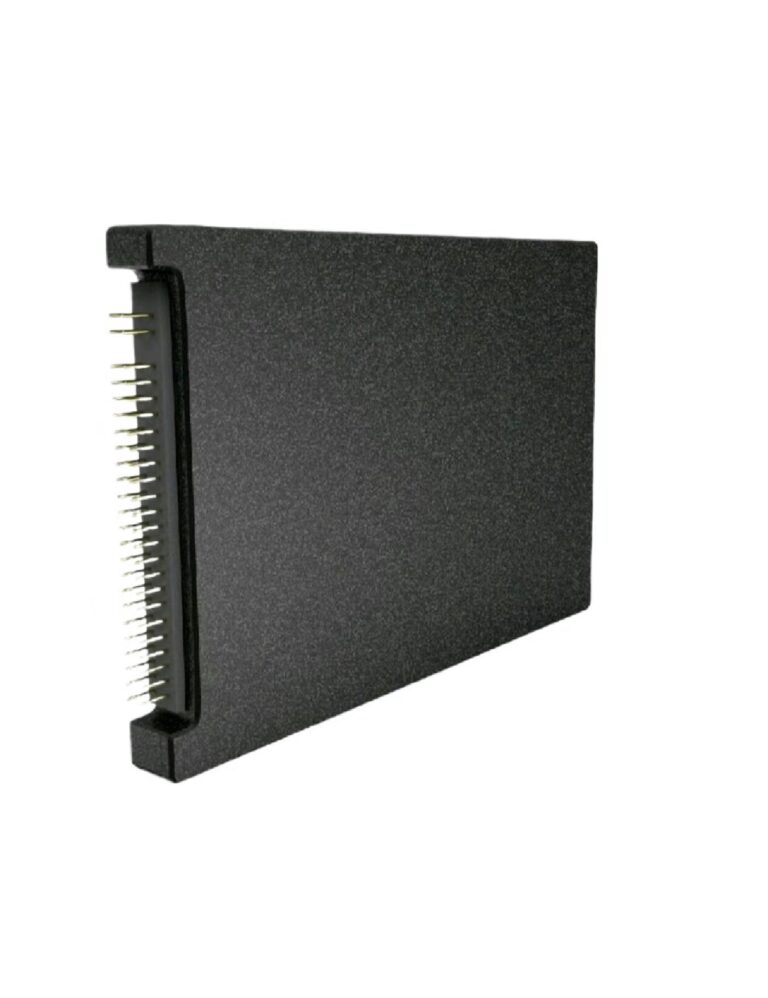

I1 Series 2.5 Inch PATA SSD
32GB / 64GB / 128GB / 256GB /512GB/1TB
- 2.5 Inch PATA SSD solution for industrial field
- Available in MLC/SLC from 32GB to 1TB
- Support wide temperature SSD -40℃ to +85℃
- Support Power Loss Protection
- Advanced Data Security and Stability
Indudisk PATA Hard Drive is a storage solution designed for industrial applications. It uses the legacy PATA interface, providing reliability and longevity in environments with extreme temperatures, vibrations, and shocks. These Industrial PATA SSDs are commonly used in embedded systems, industrial automation, and aerospace.
Indudisk industrial 2.5” PATA SSD has a standard ATA IDE interface, which is fully compatible with traditional ATA/IDE hard disk drives (HDD).It has wide compatibility and high reliability well suited for rigorous industrial environments. Besides that ,our PATA solution supports high performance, power loss management, and Quick Secure Erase , designed to satisfy specific applications.
Specifications
| Physical | |||||||
| Form Factor | 2.5″ PATA | ||||||
| Interface | 44PIN IDE | ||||||
| Size | 100.2×69.85×9.0 mm | ||||||
| Capcity | MLC:32GB~1TB SLC:32GB~512GB | ||||||
| Flash Type | MLC/SLC | ||||||
| Performance | |||||||
| Sequential Read/Write | 95/85 MB/S | ||||||
| Random IOPS Read/Write(4K) | 700/700 MB/S | ||||||
| Access Time | <0.1ms | ||||||
| Electrical | |||||||
| Power Supply | 5V±5%(Max 1.5A) | ||||||
| Power Consumption | Active: ≤2.5W Idle: ≤0.6W | ||||||
| Temperature | |||||||
| Operating Temperature | Wide Temp.:-40℃～85℃ Industrial temp.: -20℃～+70℃ Extended Temp.:-55～+105℃ | ||||||
| Storage Temperature | (-55℃～+95℃) | ||||||
| Environmental | |||||||
| Vibration | 16.4G(10-2000Hz) | ||||||
| Shock(Operating) | 1500G(11ms,Half sine wave) | ||||||
| Humidity | 5%～95%（No Condensing） | ||||||
| Reliability | |||||||
| MTBF | 2000000hrs | ||||||
| Data Retention(Max): | 10 Years@25℃ | ||||||
| Special Functions | |||||||
| Power Loss Protection(PLP) | √ | ||||||
| Conformal Coating | √ | ||||||
| Secure Erase | Optional | ||||||
| Physical Destruction | Optional | ||||||
| TRIM | √ | ||||||
| S.M.A.R.T | √ | ||||||
