I6 Series

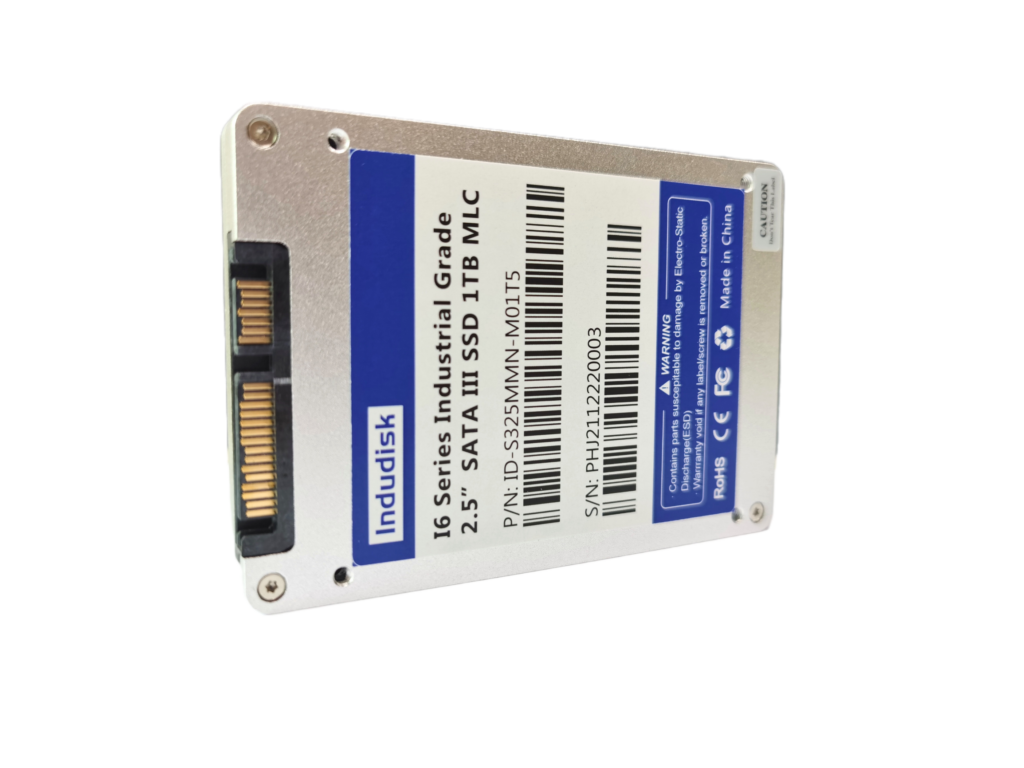

Military SSD- I6 2.5″ SATA SSD
Features
- MLC SSD/PSLC SSD/SLC SSD options
- Rugged SSD for harsh environments
- High Reliability, High Endurance
- High Capacity,Low Power
- Low Power, Low Cost
- Secure Data Security
Indudisk Military SSD I6 Series 2.5″ SATA SSD is fully compliant with the standard 2.5-inch Form Factor.It comes in many flash types(MLC/SLC/pSLC) offering 128GB to 2TB capacity.Besides, Indudisk I6 Series 2.5 SATA SSD MLC SSD 1TB SSD not only delivers extreme read/write performance ,but also offers advanced features like withstanding humidity shock and vibration, wide temperature Technology,uncompromised Data Integrity and reliability, Secure Data Security and Encryption and high reliability. It is ideal storage solutions for mission critical applications applications.
I6 Series MLC SSD is a cost-effective solution for most industrial applications.
I6 Series PSLC SSD is a high endurance MLC product, which simulates the SLC mechanism to improve product endurance.
I6 Series SLC SSD is provided with the highest endurance and data retention for some mission-critical applications.
Specifications I6 Series 2.5" SATAIII SSD
| Physical | |||||||
| Form Factor | 2.5″ SATA 7+15pin Connector | ||||||
| Interface | SATAIII (SATAII and SATAI Compatible) | ||||||
| Size | 100.2×69.85×7.0 mm | ||||||
| Capcity | MLC:128GB~2TB SLC: 32GB~512GB | ||||||
| Flash Type | MLC/SLC | ||||||
| Performance | |||||||
| Sequential Read/Write | MLC: 550/450 MB/S SLC:470/470 MB/S | ||||||
| Random IOPS Read/Write(4K) | 70K/70K MB/S SLC:55K/60K | ||||||
| Access Time | <0.1ms | ||||||
| Electrical | |||||||
| Power Supply | 5V±5%(Max 1.5A) | ||||||
| Power Consumption | Active: ≤3.5W(2W for SLC) Idle: ≤0.8W(0.3W for SLC) | ||||||
| Temperature | |||||||
| Operating Temperature | Wide Temp.:-40℃～85℃ Extended Temp.:-55～+105℃ | ||||||
| Storage Temperature | (-55℃～+95℃) | ||||||
| Environmental | |||||||
| Vibration | 6.06Grms(Peak,20-2000Hz,x3 Axis,10minutes/Axis) | ||||||
| Shock(Operating) | 50G(11ms,Half sine wave) | ||||||
| Humidity | 5%～95%（No Condensing） | ||||||
| Reliability | |||||||
| MTBF | 2000000hrs | ||||||
| Data Retention(Max): | 10 Years@25℃ | ||||||
| Special Functions | |||||||
| Power Loss Protection(PLP) | √ | ||||||
| Secure Erase | Optional | ||||||
| Physical Destruction | Optional | ||||||
| TRIM | √ | ||||||
| S.M.A.R.T | √ | ||||||
| AES256 Encryption, OPAL 2.0 Compliant | Optional | ||||||
