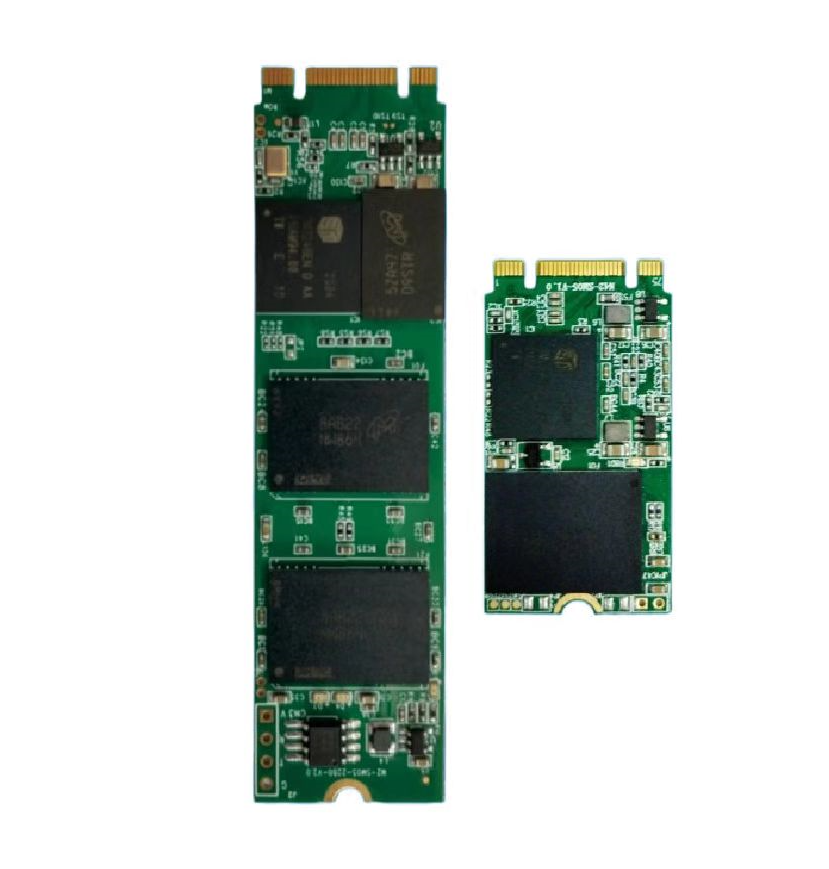

M.2 2280 SATA SSD I6 Series
Key Features
l M.2 SATA (NGFF) Small form factor
l M.2 2280/M.2 2242/ options
l High Capacity,High Reliability
l Power Loss Protection
l Low Power, Low Cost
Indudisk M.2 SSDs with SATA and PCIe interface are designed to meet the requirements of embedded and NetCom applications. AllIndudisk industrial SSDs are highly reliable and durable,optimized for low cost.
Industrial M. 2 SSD offers highly reliable mass storage in a M.2 form factor which is available in type 2242 and 2280.It is full compliant with
the standard Next Generation Form Factor（NGFF) called M.2 Card Format, which is generated by Intel. With adopting MLC/ SLC NAND Flash
technology, and utilizing a unique firmware architecture, Indudisk M.W SATA SSD delivers higher performance, higher capacity and higher reliability while minimizing the overall module footprint, making them the best embedded solution for new platforms.
Specifications
| Physical | |||||||
| Form Factor | M.2 2280/M.2 2242 | ||||||
| Interface | SATAIII | ||||||
| Size | 80*22*3.7mm/42*22*3.7mm | ||||||
| Capcity | 16GB~1TB(MLC) 16GB~512GB(SLC) | ||||||
| Flash Type | MLC/SLC | ||||||
| Performance | |||||||
| Sequential Read/Write | 550/450MB/S | ||||||
| Random IOPS Read/Write(4K) | 70K/70K MB/S | ||||||
| Access Time | <0.1ms | ||||||
| Electrical | |||||||
| Power Supply | 3.3V±5% | ||||||
| Power Consumption | 3.5W(active) 0.8W(idle) | ||||||
| Temperature | |||||||
| Operating Temperature | Wide Temp.:-40℃～85℃ Industrial temp.: -20℃～+70℃ Commercial Temp.:0℃～+70℃ | ||||||
| Storage Temperature | (-55℃～+95℃) | ||||||
| Environmental | |||||||
| Vibration | 16.4G(10-2000Hz) | ||||||
| Shock(Operating) | 1500G(0.5ms,Half sine wave) | ||||||
| Humidity | 5%～95%（No Condensing） | ||||||
| Reliability | |||||||
| MTBF | 2000000hrs | ||||||
| Data Retention(Max): | 10 Years@25℃10 Years@25℃ | ||||||
| Special Functions | |||||||
| Power Failure Protection | √ | ||||||
| Conformal Coating | √ | ||||||
| Secure Erase | Optional | ||||||
| TRIM | √ | ||||||
| S.M.A.R.T | √ | ||||||
