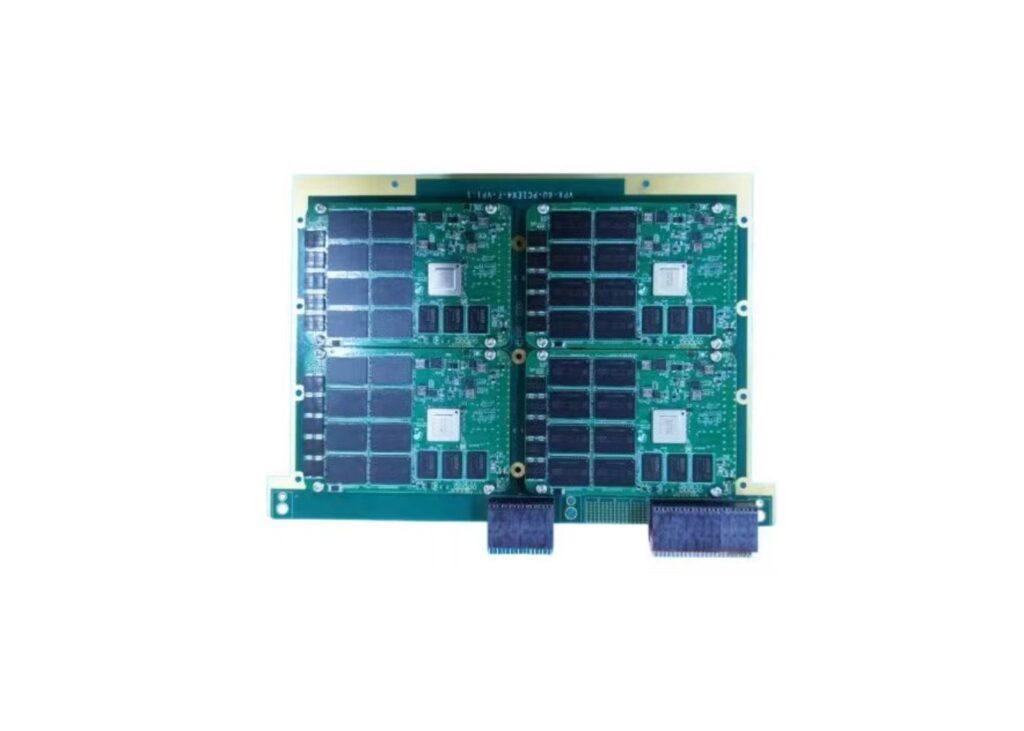

VPX 6U sATA SSD I6 Series
Indudisk 6U Open VPX Storage Card adopts latest NVMe and SATA SSDs for new generations of embedded systems based on the VITA standards, maximum capacity up to 32TB. Open VPX is the architecture framework that defines system level VPX interoperability for multi-vendor, multi-module, integrated system environments. It is specially designed for those which require high performance and high-capacity data storage and also require frequent removal from the VPX system. These products consist of two components: the VPX carrier board that mounts to VPX backplane that mounts in VPX chassis and the removable SSD drive module.
Key Features
l 6U VPX mass storage module
lSATA, PCIe, and NVMe interfaces
lCapacities currently up to 32 TB
lTransfer rates up to 2900 MB/s
lRemovable drive modules rated for 100,000 mating cycles
Specifications
| Physical | ||
| Form Factor | VPX 6U 1x SATA, 2x SATA and 4x SATA | |
| Interface | SATAIII | |
| Size | 233 x160x24.2mm | |
| Capcity | 8TB~32TB | |
| Flash Type | MLC | |
| Performance | ||
| Sequential Read/Write | 550/450 MB/S | |
| Access Time | <0.1ms | |
| Electrical | ||
| Power Supply | 12V±5%(Max 1.5A) | |
| Power Consumption | Active: 6.4W Idle: 2.0W | |
| Temperature | ||
| Operating Temperature | Wide temp.:-40℃～+85℃ Industrial temp.: -20℃～+70℃ Commercial Temp.:0℃～+70℃ |
|
| Storage Temperature | (-55℃～+95℃) | |
| Environmental | ||
| Vibration | 16.4G(10-2000Hz) | |
| Shock(Operating) | 1500G(0.5ms,Half sine wave) | |
| Humidity | 5%～95%（No Condensing） | |
| Reliability | ||
| MTBF | 2000000hrs | |
| Data Retention(Max): | 10 Years@25℃ | |
| Special Functions | ||
| Power Loss Protection | Support | |
| Conformal Coating | Support | |
| Physical Destruction | Optional | |
| TRIM | Support | |
| S.M.A.R.T | Support | |
