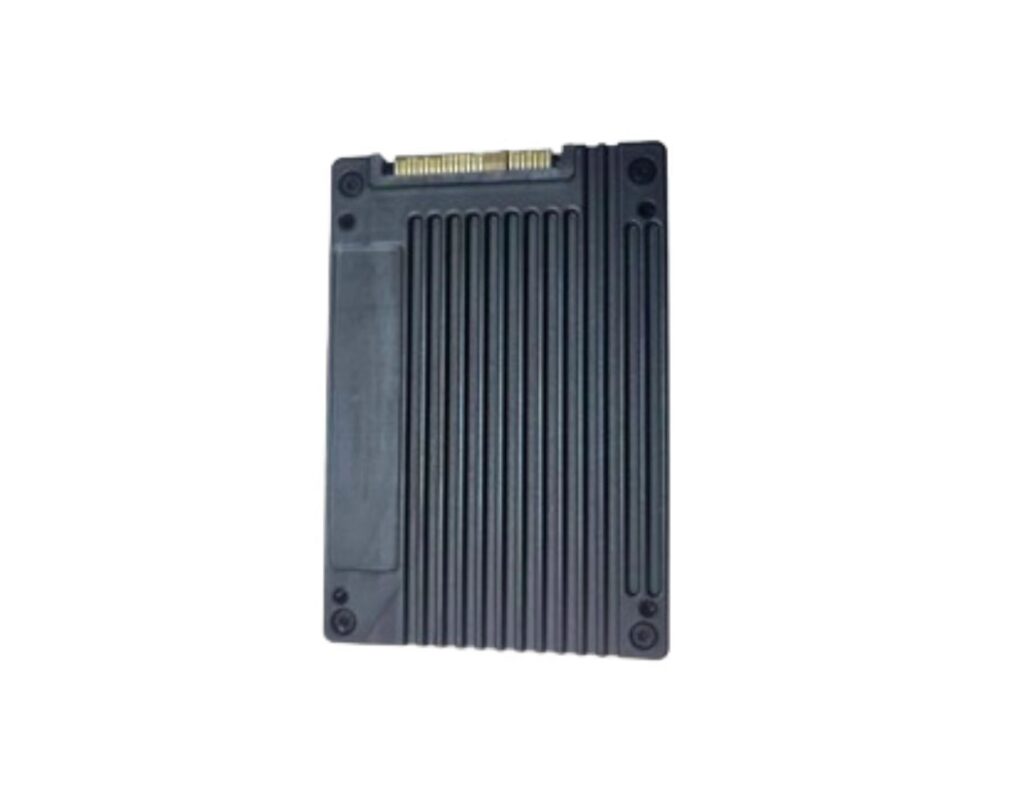

I8 Series U2 nVME SSD
Indudisk U.2 NVMe SSD I8 Series is a high-performance, high reliability solid state drive (SSD) solution, built with the advanced PCIe NVMe controller in a
standard 2.5-inch form factor housing. Capacities range from 320 GB to 7.68 TB
and can support wide temperature -40°C to 85°C and Commercial Temperature 0°Cto 70°C to meet the varied usage requirements of embedded/industrial PCs,
networking systems, and other function-critical segments.
Key Features
l Extreme Performance
l Large Capacity
l Power Loss Protection
l Cost-effective
Specifications I8 Series U2 NVMe SSD
| Physical | |||||||
| Form Factor | U.2 NVMe | ||||||
| Interface | PCIe 3.0×4, PCIe 4.0 x4 | ||||||
| Size | 100.45×69.85x15mm | ||||||
| Capcity | 2TB ~ 8TB | ||||||
| Flash Type | TLC | ||||||
| Performance | |||||||
| Sequential Read/Write | PCIe 3.0: 2900/2700 MB/S PCIe 4.0:4200/3600 MB/S | ||||||
| Random IOPS Read/Write(4K) | 70K/70K MB/S SLC:55K/60K | ||||||
| Access Time | <0.1ms | ||||||
| Electrical | |||||||
| Power Supply | 12V±5%(Max 1.5A) | ||||||
| Power Consumption | Active: ≤12.5W Idle: ≤2.7W | ||||||
| Temperature | |||||||
| Operating Temperature | Commercial Temp.:0℃～+55℃ Industrial temp.: -20℃～+55℃ | ||||||
| Storage Temperature | (-55℃～+95℃) | ||||||
| Environmental | |||||||
| Vibration | 16.4G(10-2000Hz) | ||||||
| Shock(Operating) | 1500G(0.5ms,Half sine wave) | ||||||
| Humidity | 5%～95%（No Condensing） | ||||||
| Reliability | |||||||
| MTBF | 2000000hrs | ||||||
| Data Retention(Max): | 10 Years@25℃ | ||||||
| Special Functions | |||||||
| Power Loss Protection(PLP) | √ | ||||||
| Conformal Coating | √ | ||||||
| Physical Destruction | Optional | ||||||
| TRIM | √ | ||||||
| S.M.A.R.T | √ | ||||||
