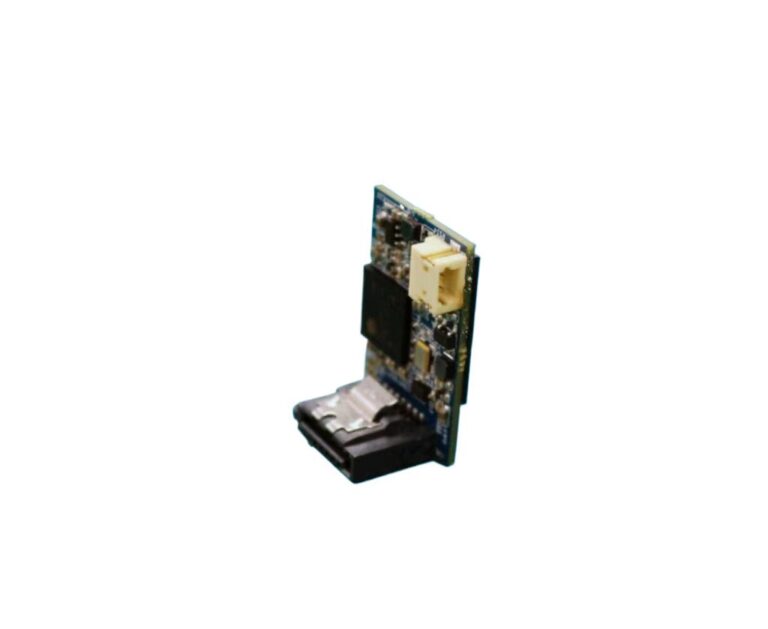

I6 Series SATA DOM
Indudisk SATA DOM I6 Series is compact in size and
available with horizontal connectors for high compatibility. It is special
designed for embedded applications which require solid state storage in
small, removable form factors. It is perfectly suitable for industrial
computers, embedded systems, POS/ kiosk, networking, and healthcare
applications.
Key Features
l SATA DOM with
Horizontal
l MLC/SLC
NAND flash for high reliability
l 3K/10K
P/E Cycles – improved endurance and lifespan
l Wide
temperature support: -40ºC to 85ºC
l High Performance, Low Power
Specifications I6 Series SATA DOM
| Physical | |||||||
| Form Factor | SATA DOM | ||||||
| Interface | SATAIII (SATAII and SATAI Compatible) | ||||||
| Size | 27×1.8×7.0 mm | ||||||
| Capcity | MLC:8GB~256GB SLC:8GB~64GB | ||||||
| Flash Type | MLC/SLC | ||||||
| Performance | |||||||
| Sequential Read/Write | MLC: 500/400 MB/S SLC:500/400 MB/S | ||||||
| Random IOPS Read/Write(4K) | 70K/70K MB/S SLC:55K/60K | ||||||
| Access Time | <0.1ms | ||||||
| Electrical | |||||||
| Power Supply | 5V±5%(Max 1.5A) | ||||||
| Power Consumption | Active: ≤2.5W(2W for SLC) Idle: ≤0.8W(0.3W for SLC) | ||||||
| Temperature | |||||||
| Operating Temperature | Industrial temp.: -20℃～+70℃Wide Temp.:-40℃～85℃ Extended Temp.:-55～+105℃ | ||||||
| Storage Temperature | (-55℃～+95℃) | ||||||
| Environmental | |||||||
| Vibration | 16.4G(Peak,10-2000Hz,x3 Axis,10minutes/Axis) | ||||||
| Shock(Operating) | 1500G(0.5ms,Half sine wave) | ||||||
| Humidity | 5%～95%（No Condensing） | ||||||
| Reliability | |||||||
| MTBF | 2000000hrs | ||||||
| Data Retention(Max): | 10 Years@25℃ | ||||||
| Special Functions | |||||||
| Power Loss Protection(PLP) | √ | ||||||
| Conformal Coating | √ | ||||||
| Secure Erase | Optional | ||||||
| TRIM | √ | ||||||
| S.M.A.R.T | √ | ||||||
