A Military SATA SSD is a rugged solid-state drive designed for defense, aerospace, military vehicles, rugged computers, and other mission-critical systems requiring reliable SATA storage.

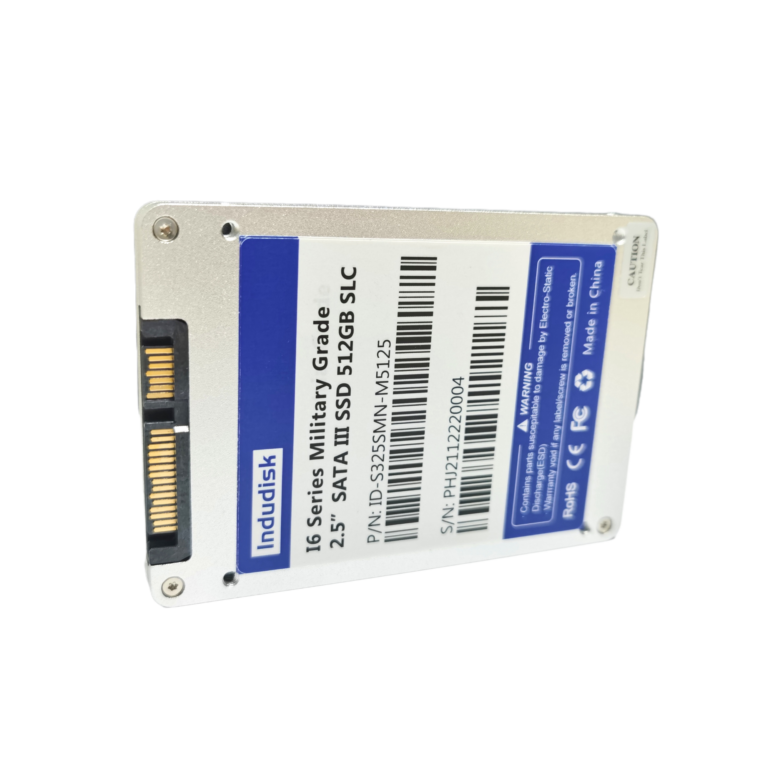

A 2.5-inch Military SATA SSD uses the standard 2.5-inch drive form factor with a SATA interface, making it suitable as a solid-state replacement for traditional 2.5-inch hard drives in rugged and embedded systems.

Yes. A compatible Military SATA SSD can replace a traditional 2.5-inch SATA hard drive while providing the advantages of solid-state storage, including no moving parts and improved resistance to shock and vibration.

Nomrally industrial ssds are designed for high reliability and performance operating in extreme environments while consumer SSDs are cost-effective storage for everyday us.The eKey differences include operating temperature ranges, durability, write endurance, and features like power loss protection and error correction.

Industrial SSDs are crafted for resilience in extreme environments, making them ideal for various demanding applications. They boast greater endurance and reliability than consumer SSDs, thanks to their rugged design and rugged components. Industrial SSDs have significantly higher reliability and endurance, with program/erase (P/E) cycles of around 3000 to100,000 compared to only about 1,000 for consumer SSDs. This allows industrial SSDs to handle heavy workloads for much longer before wearing out. Furthermore, they are designed to endure industrial temperatue and wide temperature ranges (from -40°C to 85°C, while consumer SSDs typically only support 0°C to 70°C).

The main difference between industrial ssd and military ssd lies in the design for environmental resilience,security features and reliability.Industrial SSDs are built to withstand harsh conditions like extreme temperatures and vibrations, while military SSDs incorporate even more rigorous standards for security, data protection, and resistance to environmental stressors like shock, vibration,humidity and electromagnetic interference.

Most people are still confused to select a right SSD type . Generally speaking, this greatly depends on the operating temperature range of your application environment for the SSD. As an SSD manufacturer ,Consumer SSDs/Commercial SSDs are designed to operate at temperatures ranging from 0 degrees Celsius  to 70 degrees Celsius , Industrial SSDs are designed to operate at  temperatures ranging from -20 degrees Celsius  to 70 degrees Celsius while military SSDs/rugged SSDs are designed to operate at  temperatures ranging from -40 degrees Celsius  to 85 degrees Celsius.

Generally Speaking, we can differ Industrial SSDs from military SSDs by their Operating Temperature as below:

• Commercial SSD Operating Temperature: 0C to +70C
• Industrial SSD Operating Temperature :-20C to +70C
• Military SSD Operating Temperature:-40C to +85C

If you are exploring your options for industrial flash storage, two contenders are likely to be on your list: SLC NAND and MLC NAND. Both forms of NAND flash storage are popular and reliable, and each one has its most appropriate uses. The trick is not using MLC NAND when you really need SLC, or paying for SLC when you could get by with MLC. Which NAND flash storage technology is right for your application? This comparison of SLC NAND vs. MLC NAND will help you make up your mind.

With SLC NAND, one bit of data is stored on each cell. This kind of storage is extremely important for devices in which critical data will be saved.It provides suitable reliability and greatly minimizes the risk of data loss and corruption.

With MLC Nand,MLC stands for multi-level cell with  two bits of data are stored per cell.You will find it most often in commercial and industrial applications. MLC NAND is the right solution for these products because it costs less than SLC NAND.

SLC and MLC flash mermory are similar in their design. MLC SSDs cost less and allow for higher storage density. SLC SSDs provide faster write performance and higher reliability.

With TLC Nand, a triple-level cell NAND flash, stores three bits of data per cell.It is ideal for consumer grade products because the price point of TLC flash is the lowest of these three forms.

As for SSD endurance, SLC SSD is rated at approximately 100,000 PE cycles  per cell. SLC SSD is is rated at approximately 10,000 PE cycles per cell. TLC SSD is rated at approximately 3,000 PE cycles per cell.While QLC is rated at approximately only 1,000 PE cycles per cell.

An SSD form factor is the size, configuration or physical arrangement of solid-state storage media.The form factor determines the media’s physical compatibility and interchangeability with other computer components or devices.

2.5″

when buying an SSD, the first thing you want to know is which form factor fits your system. SSDs come in a variety of form factors. For example,2.5″ is the most common type of SSD and fits into most laptop or desktop computers.It has a similar shape to a traditional HDD and connects over SATA cables so it offers a very familiar experience to what many are already used to.

M.2

M.2 has become the standard type of storage for slim laptops and notebooks.Its tiny form factor is often compared to a stick of gum and easy to install right on the motherboard in most cases. It is available in various lengths to enable different SSD capacities, The longer the drive,the more Nand flash chips can be mounted on it leading to higher capacity SSDs.

mSATA

mSATA or mini-SATA,is essentially a smaller version of the full-size SATA SSD,It uses a compact form factor like M.2 but not interchangeable.M.2 SSD can support both SATA and PCIe interface options whereas mSATA only supports SATA. This form factor is designed for smaller form factor systems where space is limited.

U.2

Finally,there’s U.2 which looks like a 2.5″ drive but it is a bit thicker .It uses a different connector and sends data through the PCIe interface.U.2 SSD is typically used for high-end workstations,servers and interprise applications that need greater storage.It allows higher operating temperatures and is more favorable for transferring heat than M.2 form factor.

While M.2 and NVMe are popularly used now,they actually refer to different technologies that can be used together but:

• NVMe is a storage transfer protocol specially designed for high-performance,non-volatile storage media.
• M.2 is an SSD form factor that enables high-performance storage.
• M.2 SSD connected using the NVMe interface deliver faster read/write speed

 M.2 NVMe SSDs  are much more performance driven compared to M.2 SATA SSDs. By leveraging the PCIe bus, M.2 NVMe SSDs  have theoretical transfer speeds of up to 20Gbps which is already faster compared to M.2 SATA SSDs with 6Gbps. PCIe buses can support 1x, 4x, 8x, and 16x lanes.

Consumer 2.5″ SATA SSDs are primarily designed for PCs and everyday workloads, while Industrial 2.5″ SATA SSDs are optimized for continuous operation, wider temperature ranges, higher endurance, long-term availability, and industrial system integration.

Yes. Depending on project requirements, Indudisk can provide customization of firmware, NAND configuration, endurance, security functions, temperature grade, and other hardware parameters.
