Industrial 2.5" SATA SSD
Reliable SATA Storage for Industrial & Embedded Systems
Designed for industrial PCs, embedded computers, transportation systems and automation equipment requiring reliable 2.5-inch SATA storage and long-term product availability
- 2.5-inch SATA Form Factor
- Industrial-Grade Reliability
- Capacity Options up to 7.68TB
- Power Loss Protection and Security Options
- Long -Term Supply
2.5-inch
Standard Form Factor
Data Protection
PLP option
Temperature
Wide temp.option
Long-Term Supply
Controlled BOM
Product Overview
Industrial 2.5" SATA SSD for Embedded & Industrial Computing
Indudisk’s Industrial 2.5″ SATA SSD is engineered to deliver reliable, long-term storage for industrial automation, embedded computing, transportation, medical devices, surveillance systems, and mission-critical applications. Built with industrial-grade NAND Flash and advanced firmware technologies, it provides stable performance, exceptional endurance, and long lifecycle support for systems operating 24/7 in demanding environments.
Designed to withstand harsh operating conditions, our industrial SATA SSD features wide temperature support, intelligent error correction, power-loss protection, and optional security functions to ensure maximum data integrity and system reliability. Available in multiple capacities and customizable for OEM projects, it is an ideal storage solution for industrial PCs, embedded systems, edge computing, and rugged applications.
For OEMs and system integrators, Indudisk provides customization and long-term supply support to help maintain system compatibility and product consistency throughout the project lifecycle.
Why Choose Indudisk Industrial 2.5" SATA SSD
Reliable Storage for Continuous Operation
Designed for industrial and embedded systems that require stable storage performance during extended operating cycles.
Flexible Temperature Options
Selected configurations are available for extended operating temperature requirements. Choose the appropriate operation temperature grade based on your system environment.
Industrial Reliability & Quality Control
Rugged Design and Strictly quality management system help support consistent product performance. Specific test procedures and certifications are available upon request where applicable.
Long-Term Product Availability
Long-term cooperation suppliers and Controlled BOM management help OEMs and system integrators reduce unexpected component changes and redesign risks.
Industrial 2.5" SATA SSD Applications
Reliable 2.5-inch SATA storage for industrial PCs, embedded computers and control platforms with compatible SATA drive bays.
SATA storage for onboard computers, transportation monitoring, and data recording systems.
Storage for factory automation systems, industrial controllers, and production equipment requiring stable data access.
Robotics & Automation
Storage for robotic controllers, industrial computers and automated production systems.

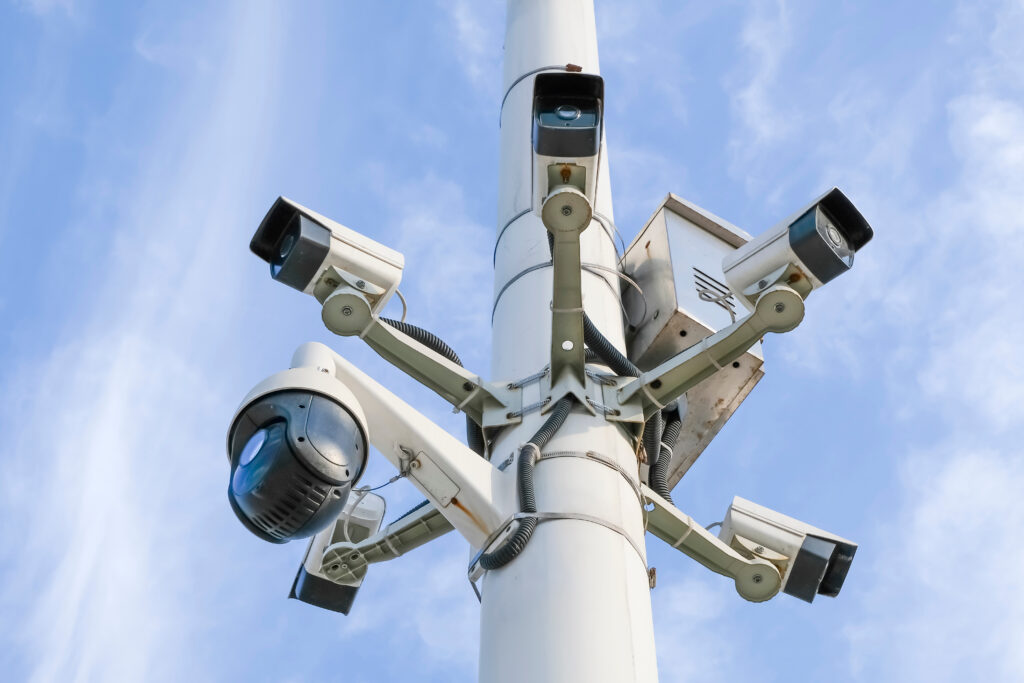

Surveillance & Video Systems
Storage for compatible NVR, DVR, and video surveillance platforms requiring continuous recording and suitable write endurance.
AI Edge Computing
Local storage for compatible edge computing platforms handling application data, logs, and system workloads.
Technical Specifications
| Product Line | Industrial 2.5″ SATA SSD | Industrial 2.5″ SATA SSD | ||||||
|---|---|---|---|---|---|---|---|---|
| Naming | I7 Series | I8 Series | ||||||
| Interface | SATA III 6 Gb/s | SATA III 6 Gb/s | ||||||
| General Specifications | ||||||||
| Form Factor | 2.5″ | 2.5″ | ||||||
| Protocol | SATAIII | SATAIII | ||||||
| Size | 100.2mm×69.85mm×7mm | 100.2mm×69.85mm×7mm | ||||||
| Flash Type | 3D TLC | 3D TLC | ||||||
| Performance & Capacity | ||||||||
| Capcity | 256GB to 4TB | 512GB to 7.68TB | ||||||
| Sequential Read/Write | 520/490 MB/S | 530/510 MB/S | ||||||
| Random IOPS Read/Write(4K) | 90K/70K IOPS | 92K/31K IOPS | ||||||
| Endurance | Up to 5,400 TBW (4TB) | Up to 8,000TBW(7.68TB) | ||||||
| Electrical | ||||||||
| Power Supply | 5.0V±5% @2A | 5.0V±5% @2A | ||||||
| Power Consumption(Max.) | 3.5W(active) ,0.65W(idle) | 4.43W(active) ,1.36W(idle) | ||||||
| Environmental & Reliability | ||||||||
| Operating Temperature | 0℃～+70℃/( -20℃～+70℃)/( -40°C to +85°C) | 0℃～+70℃/( -20℃～+70℃)/( -40°C to +85°C) | ||||||
| Storage Temperature | (-55℃～+95℃) | 0℃～+70℃/( -20℃～+70℃)/( -40°C to +85°C) | ||||||
| Vibration | 16.4G(10-2000Hz) | 16.4G(10-2000Hz) | ||||||
| Shock(Operating) | 1500G(0.5ms,Half sine wave) | 1500G(0.5ms,Half sine wave) | ||||||
| Humidity | 5%～95%（No Condensing） | 5%～95%（No Condensing） | ||||||
| MTBF | 2,000,000 hours | 2,000,000 hours | ||||||
| Reliability & Data Protection | ||||||||
| ECC | LDPC | LDPC | ||||||
| TRIM | SUPPORT | SUPPORT | ||||||
| S.M.A.R.T | SUPPORT | SUPPORT | ||||||
| Power Loss Protection(PLP) | OPTIONAL | OPTIONAL | ||||||
| Conformal Coating | OPTIONAL | OPTIONAL | ||||||
| Secure Erase | OPTIONAL | OPTIONAL | ||||||
| *1.Performance and reliability specifications are model-dependent and may vary by capacity, operating temperature and test conditions. | ||||||||
| 2. Please refer to the product datasheet for detailed specifications. |
Ordering Information
| Ordering Information | |||||
|---|---|---|---|---|---|
| Model | Capacity | NAND | Temperature Option | Datasheet / Inquiry | |
| I7-S325-256 | 256GB | 3D TLC | 0°C to 70°C/-20°C to 70°C/-40°C to 85°C | Request a Quote | |
| I7-S325-512 | 512GB | 3D TLC | 0°C to 70°C/-20°C to 70°C/-40°C to 85°C | Request a Quote | |
| I7-S325-01T | 1TB | 3D TLC | 0°C to 70°C/-20°C to 70°C/-40°C to 85°C | Request a Quote | |
| I7-PS325-02T | 2TB | 3D TLC | 0°C to 70°C/-20°C to 70°C/-40°C to 85°C | Request a Quote | |
| I7-PS325-04T | 4TB | 3D TLC | 0°C to 70°C/-20°C to 70°C/-40°C to 85°C | Request a Quote | |
| I8-S325–512 | 512GB | 3D TLC | 0°C to 70°C/-20°C to 70°C/-40°C to 85°C | Request a Quote | |
| I8-S325–01T | 1TB | 3D TLC | 0°C to 70°C/-20°C to 70°C/-40°C to 85°C | Request a Quote | |
| I8-S325–02T | 2TB | 3D TLC | 0°C to 70°C/-20°C to 70°C/-40°C to 85°C | Request a Quote | |
| I8-S325–04T | 4TB | 3D TLC | 0°C to 70°C/-20°C to 70°C/-40°C to 85°C | Request a Quote | |
| I8-S325–08T | 7.68TB | 3D TLC | 0°C to 70°C/-20°C to 70°C/-40°C to 85°C | Request a Quote | |
Explore Other Industrial SSD Solutions
FAQ
An Industrial 2.5″ SATA SSD is a solid-state drive designed for industrial computers, embedded systems, and equipment that uses a standard 2.5-inch SATA drive bay. Compared with general consumer storage, industrial SSD configurations can offer application-specific endurance, extended temperature options, and long-term product availability.
Many industrial PCs support standard 2.5-inch SATA SSDs. Before selecting a drive, verify the host system’s SATA interface, connector, physical clearance, power requirements, and supported capacity.
The product series currently lists capacities from 256GB to 7.68TB. Available capacities and specifications should be confirmed against the latest model list and datasheet.
Yes,Temperature options depend on the selected model. Available configurations may include 0°C to +70°C, -20°C to +70°C, and -40°C to +85°C. Please confirm the rated operating temperature in the relevant datasheet.
Yes,Hardware power-loss protection is available for supported configurations. Contact Indudisk to confirm the implementation, model availability, and suitability for your system’s data-protection requirements.
Yes,Customization is subject to product and engineering feasibility. Depending on project requirements, options may include capacity, firmware, operating temperature, data-protection functions, and selected hardware configurations. Contact our team with your host platform and application requirements to discuss a suitable solution
Looking for an Industrial 2.5" SATA SSD?
Tell us about your required capacity, host system, operating temperature, workload, and expected product lifecycle. Our team can help you evaluate SATA compatibility and select a suitable SSD configuration for your industrial or embedded application.
