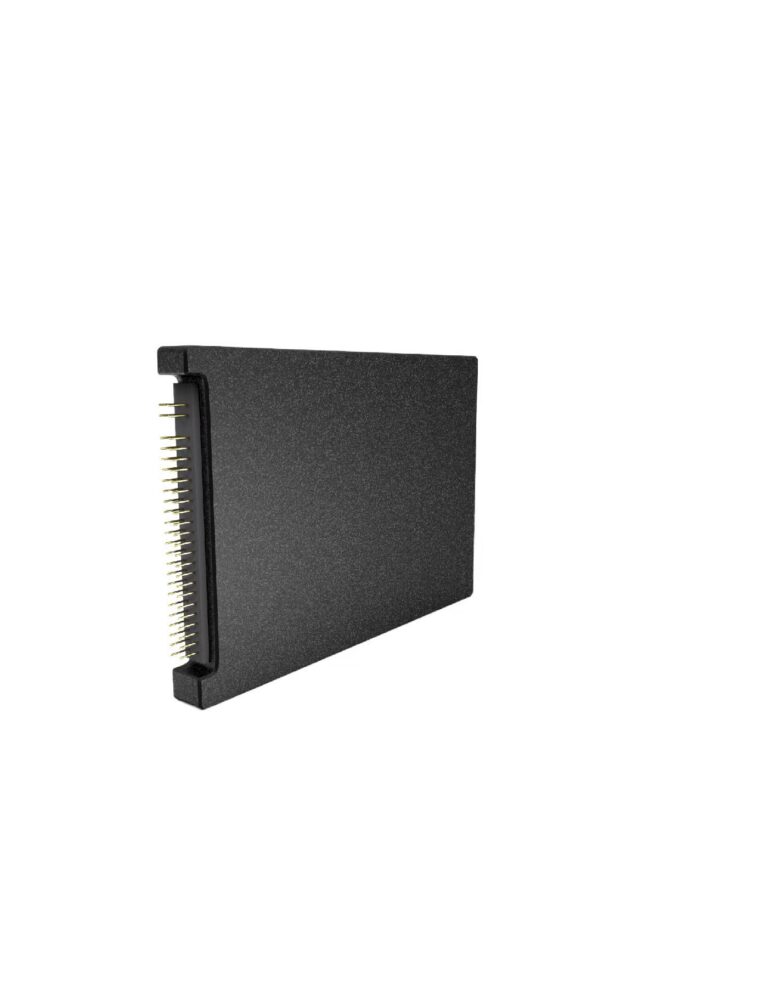

Military PATA SSD
2.5-Inch PATA Storage for Legacy Defense Systems
Indudisk Military PATA SSDs provide a reliable solid-state storage solution for legacy military computers, defense electronics, and rugged embedded platforms using ATA/IDE interfaces.
-
2.5-Inch PATA / IDE Interface
-
Legacy HDD Replacement
-
SLC / MLC NAND Options
-
Wide Temperature Configurations
- Long Lifecycle Supply
2.5-Inch PATA / IDE
44-Pin Connector
-40°C to +85°C
SLC / MLC NAND
Product Overview
Military PATA SSD for Legacy Defense Systems
Indudisk PATA Hard Drive is a storage solution designed for industrial applications. It uses the legacy PATA interface, providing reliability and longevity in environments with extreme temperatures, vibrations, and shocks. These Industrial PATA SSDs are commonly used in embedded systems, industrial automation, and aerospace.
Indudisk industrial 2.5” PATA SSD has a standard ATA IDE interface, which is fully compatible with traditional ATA/IDE hard disk drives (HDD).It has wide compatibility and high reliability well suited for rigorous industrial environments. Besides that ,our PATA solution supports high performance, power loss management, and Quick Secure Erase , designed to satisfy specific applications.
Designed for long-term system mainteance:
Maintain existing PATA/IDE interface compatibility
Replace aging mechanical hard drives
Reduce mechanical wear associated with HDDs
Support legacy embedded system maintenance
Provide application-specific configurations and lifecycle
Key Features
PATA / IDE Compatibility
Designed for systems using legacy ATA/IDE storage interfaces
Wide Temperature Options
Support -40°C to +85°C for outdoor and embedded deployments.
Data Security Options
Selected configurations support fast secure erase and power loss protection.
Long Lifecycle Supply
Controlled BOM and product lifecycle planning for long-term projects.
Typical Applications
Storage upgrades for legacy military computing platforms that require continued ATA/IDE interface compatibility.
Solid-state storage for legacy aerospace and avionics equipment using PATA-based storage architectures.
Reliable storage for rugged laptops, embedded computers, and field-deployed computing platforms.
Military Vehicle Systems
Reliable Storage for military vehicle computers, onboard monitoring, and ruggedized ground platforms
Military Communication Systems
PATA storage solutions for legacy communication equipment and embedded processing platforms.
System Upgrade
A practical SSD replacement option for aging PATA/IDE hard drives in long-life equipment
Reliability Testing for Military PATA SSD
Environmental Temperature Testing
Evaluates SSD operation across specified temperature ranges from -40°C to +85°C to verify performance stability under demanding environments.
Shock & Vibration Testing
Assesses mechanical stability under 1500G shock and 16.4G vibration conditions relevant to rugged embedded applications.
Endurance & Reliability Testing
Evaluates storage performance and endurance under defined read/write workloads and operating conditions.
Data Security Testing
Verifies supported data protection and security functions according to product configuration
Power Failure & Recovery Testing
Evaluates SSD behavior during unexpected power interruptions and recovery scenarios.
Compatibility Testing
Checks compatibility with customer motherboards, embedded computers, and target operating platforms.
Reliability by Design
Storage Reliability for Long-Term Defense Programs
NAND Flash Selection
SLC / MLC Nand options subject to endurance, workload and actual application requirements.
Firmware & Hardware Optimization
Firmware and hardware configurations can be adjusted to support system compatibility, performance consistency, and application-specific requirements
Controlled BOM Management
Component and configuration management helps support product consistency and long-term availability for OEM and defense projects.
Data Security
Data Security for Mission-Critical Storage
Data protection is an important consideration for defense and mission-critical systems. Indudisk provides optional security and power protection features based on product configuration and project requirements.
AES-256 Encryption
Optional encryption features for protecting confidential data, depending on the selected model and implementation.
Secure Erase
Secure Erase functionality for supported configurations to help customers address data sanitization requirements.
Power Loss Protection
Optional power loss protection designed to reduce the risk of data loss during unexpected power interruptions.
Physical Data Destruction
Optional hardware-level data destruction solutions for applications with specialized security requirements.
Technical Specifications
| Product Line | Military 2.5″ PATA SSD | Military 2.5″ PATA SSD | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Naming | I1 Series SLC | I1 Series MLC | |||||||
| Interface | PATA | PATA | |||||||
| General Specifications | |||||||||
| Form Factor | 2.5″ | 2.5″ | |||||||
| Protocol | IDE | IDE | |||||||
| Size | 100.2mm×69.85mm×9mm | 100.2mm×69.85mm×9mm | |||||||
| Flash Type | SLC | MLC | |||||||
| Performance & Capacity | |||||||||
| Capacity | 16GB to 512GB | 32GB to 1TB | |||||||
| Sequential Read/Write (MB/S) | 95/85 | 95/85 | |||||||
| Random IOPS Read/Write(4K) | 700/700 | 700/700 | |||||||
| Endurance | Up to 11,800 TBW (256GB) | Up to 2,360 TBW (1TB) | |||||||
| Electrical | |||||||||
| Power Supply | 5.0V±5% @2A | 5.0V±5% @2A | |||||||
| Power Consumption(Max.) | 2.5W(active) ,0.6W(idle) | 2.5W(active) ,0.6W(idle) | |||||||
| Environmental & Reliability | |||||||||
| Operating Temperature | (-40°C to +85°C)/ (-55°C to +105°C) | (-40°C to +85°C)/ (-55°C to +105°C) | |||||||
| Storage Temperature | (-55℃~+95℃) | (-55℃~+95℃) | |||||||
| Vibration | 16.4G(10-2000Hz) | 16.4G(10-2000Hz) | |||||||
| Shock(Operating) | 1500G(0.5ms,Half sine wave) | 1500G(0.5ms,Half sine wave) | |||||||
| Humidity | 5%~95%(No Condensing) | 5%~95%(No Condensing) | |||||||
| MTBF | 2,000,000 hours | 2,000,000 hours | |||||||
| Reliability & Data Protection | |||||||||
| ECC | LDPC | LDPC | |||||||
| TRIM | SUPPORT | SUPPORT | |||||||
| S.M.A.R.T | SUPPORT | SUPPORT | |||||||
| Power Loss Protection(PLP) | OPTIONAL | OPTIONAL | |||||||
| Conformal Coating | OPTIONAL | OPTIONAL | |||||||
| Secure Erase | OPTIONAL | OPTIONAL | |||||||
| Warranty | 5 Years | 5 Years | |||||||
| *1.Performance and reliability specifications are model-dependent and may vary by capacity, operating temperature and test conditions. | |||||||||
| 2. Please refer to the product datasheet for detailed specifications. |
Ordering Information
| Ordering Information | |||||
|---|---|---|---|---|---|
| Model | Capacity | NAND | Temperature Option | Datasheet / Inquiry | |
| I1-P125SM-016 | 16GB | SLC | (-40°C to +85°C)/ (-55°C to +105°C) | Request a Quote | |
| I1-P125SM-032 | 32GB | SLC | (-40°C to +85°C)/ (-55°C to +105°C) | Request a Quote | |
| I1-P125SM-064 | 64GB | SLC | (-40°C to +85°C)/ (-55°C to +105°C) | Request a Quote | |
| I1-P125SM-128 | 128GB | SLC | (-40°C to +85°C)/ (-55°C to +105°C) | Request a Quote | |
| I1-P125SM-256 | 256GB | SLC | (-40°C to +85°C)/ (-55°C to +105°C) | Request a Quote | |
| I1-P125SM-512 | 512GB | SLC | (-40°C to +85°C)/ (-55°C to +105°C) | Request a Quote | |
| I1-P125MM-032 | 32GB | MLC | (-40°C to +85°C)/ (-55°C to +105°C) | Request a Quote | |
| I1-P125MM-064 | 64GB | MLC | (-40°C to +85°C)/ (-55°C to +105°C) | Request a Quote | |
| I1-P125MM-128 | 128GB | MLC | (-40°C to +85°C)/ (-55°C to +105°C) | Request a Quote | |
| I1-P125MM-256 | 256GB | MLC | (-40°C to +85°C)/ (-55°C to +105°C) | Request a Quote | |
| I1-P125MM-512 | 512GB | MLC | (-40°C to +85°C)/ (-55°C to +105°C) | Request a Quote | |
| I1-P125MM-01T | 1TB | MLC | (-40°C to +85°C)/ (-55°C to +105°C) | Request a Quote | |
Explore Other Military SSD Solutions
FAQ
A Military PATA SSD is a solid-state drive designed for legacy defense, aerospace, and embedded systems that use a Parallel ATA (PATA) storage interface. It provides a flash-based alternative to traditional PATA hard drives.
PATA stands for Parallel ATA. IDE is a commonly used historical term for devices using the ATA interface. In many legacy storage applications, PATA and IDE are used to describe the same parallel storage interface.
A PATA SSD can replace a PATA/IDE hard drive when the interface, connector, dimensions, capacity and host compatibility match. The host system and operating environment should be verified before replacement.
The connector depends on the specific product configuration. Some 2.5-inch PATA drives use a 44-pin connector. Please confirm the connector and mechanical dimensions of your existing drive before ordering.
Operating temperature options depend on the selected SSD model and configuration. Indudisk can provide both -40°C to +85°C and -55°C to +105°C available temperature grades to meet your application environment and project requirements.
Depending on the selected model, optional features may include Fast Secure Erase , physical destruction and Power Loss Protection (PLP). Please confirm the availability of each function for your required configuration.
Yes. Indudisk supports OEM customization based on project requirements, including MLC /SLC NAND options, storage capacity, firmware, temperature configuration and selected data protection functions. Our team can help evaluate system compatibility and storage requirements.
Need to Replace a Legacy PATA / IDE Hard Drive?
Tell us your existing HDD model, interface, capacity, operating environment, and system requirements. Our SSD specialists can help evaluate a compatible Military PATA SSD solution.
Whether you need a standard PATA SSD replacement or a customized configuration, Indudisk supports OEM and system integration projects with long-lifecycle storage solutions.
